Stretched Type Evaporator/Air Cooler Supplier

Home / Product / Refrigeration Evaporator/Air Cooler / Stretched Type Evaporator/Air Cooler

Product Category

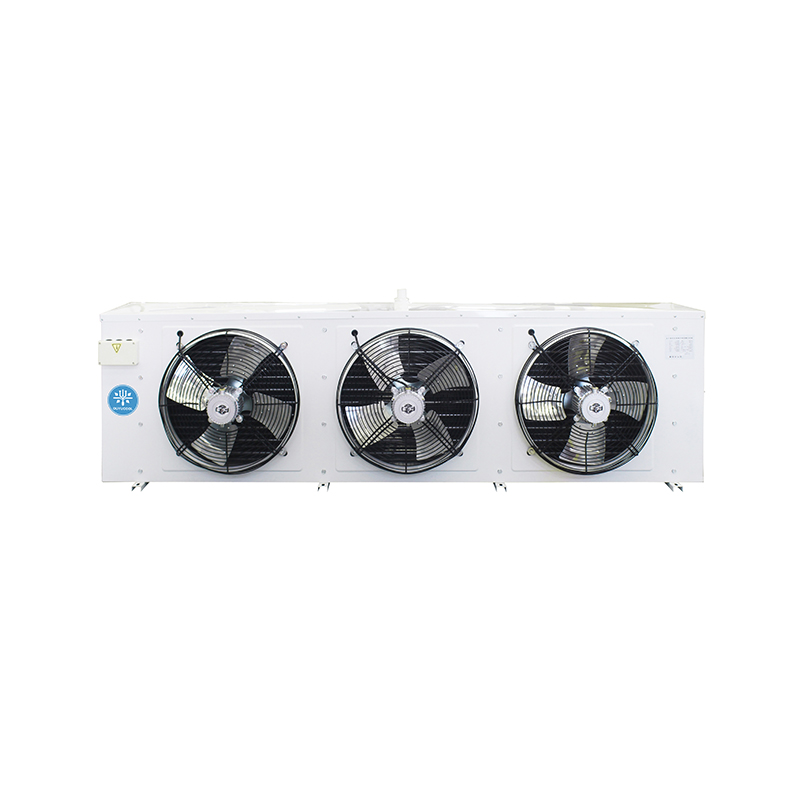

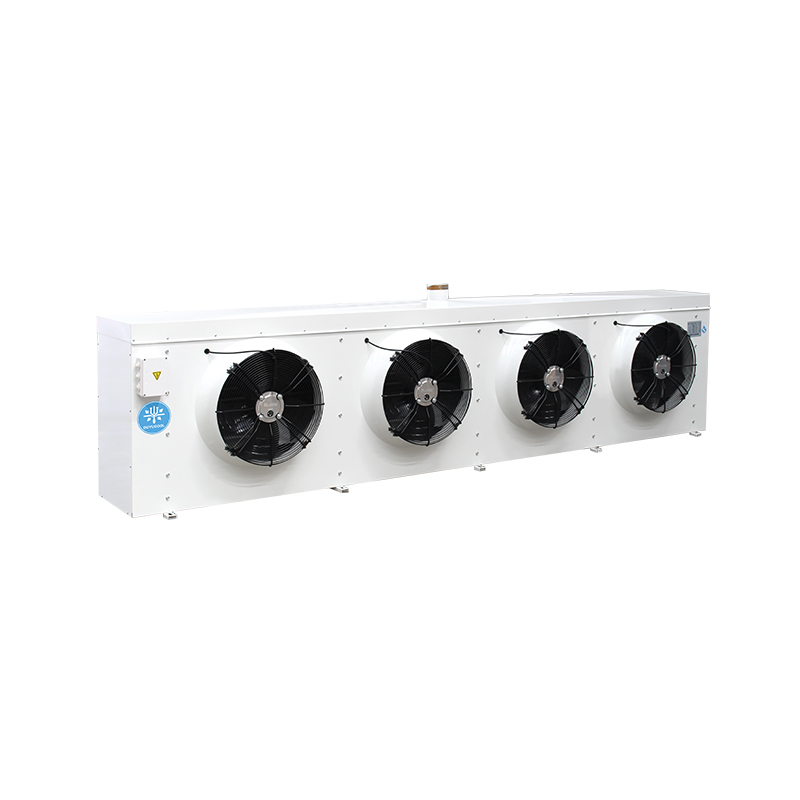

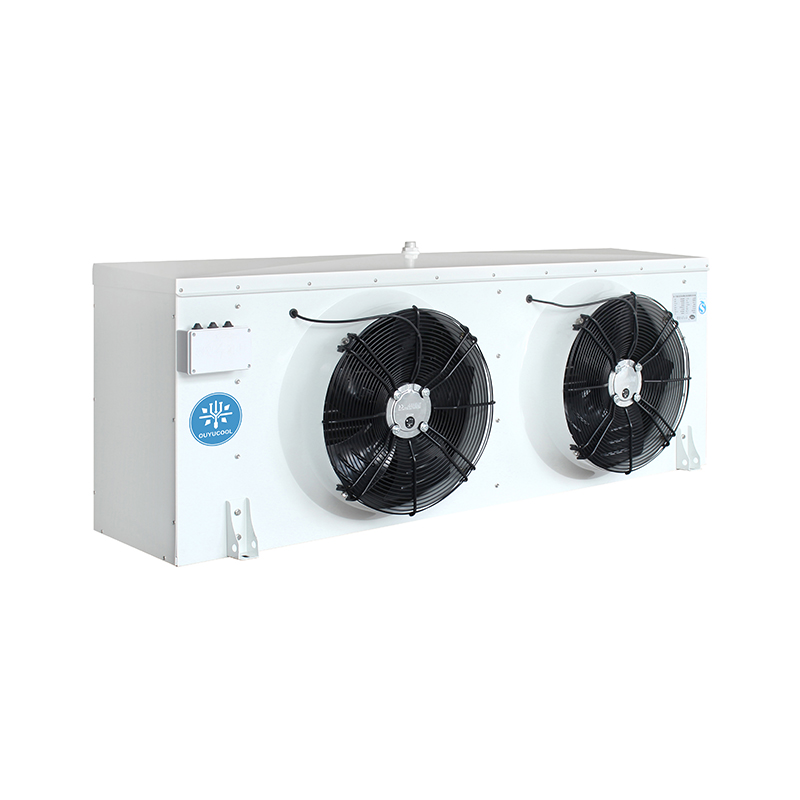

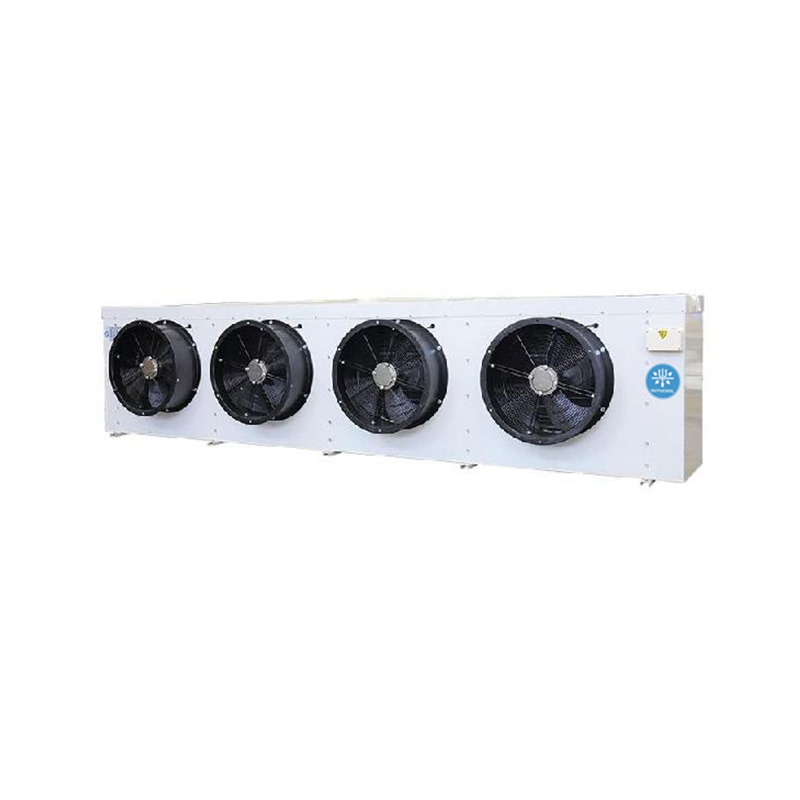

Stretched Type Evaporator/Air Cooler

Feature

The stretch type air outlet design makes the heat exchange space inside the air cooler larger. The wind pressure is large and the air supply range is longer. The cooling effect is better.
DL products are suitable for cold storage with a storage temperature of about 0℃, and can store fresh eggs, vegetables, edible fungi and other items;
DD products are suitable for cold storage with a storage temperature of about -18℃, and are suitable for freezing/refrigerating beef, mutton, fish and seafood;
DJ products are suitable for cold storage with a storage temperature of -25℃ or below, and are mainly used for quick freezing of poultry, livestock, seafood and dairy products.

CONTACT Download Catalog

Prev: E Series Special For Wine Cabinet Evaporator

Next: No next article

Technical specification
About us
Get an inquiry

DD Type Air Cooler Speciffcation

Model	Capacity	Evaporation Area	Fin Space	Fan Motor Paramet							Defrost pipe parameters
Model	Capacity	Evaporation Area	Fin Space	Qty.	Diameter	Air Flow	Max Wind Pressure	Range	Voltage	Power	Coil	Water tray	Voltage
	KW	m²	mm	pcs	mm	m³/h	Pa	m	W	V	KW	KW	V
DD-010	1.79	10	6	1	300	1×1800	90	8	1*90	220 380	1*0.7	0.8	220
DD-015	2.56	15		2	300	2×1800	90	8	2*90		1*0.85	0.8
DD-022	4.14	22		2	300	2×1800	90	8	2*90		2*0.85	0.8
DD-030	5.95	30		2	400	2×4200	105	9	2*216	380	3*1.2	1.2
DD-040	7.93	40		2	400	2×4200	105	9	2*216		3*1.2	1.2
DD-060	11.97	60		2	500	2×7600	120	11	2*449		3*1.4	1.6
DD-080	14.97	80		2	500	2×7600	120	11	2*449		3*1.6	2
DD-100	18.8	100		3	500	3×7600	120	11	3*449		3*2.1	2.2
DD-120	23.6	120		3	500	3×7600	120	11	3*449		3*2.5	2.5	380
DD-140	27.44	140		4	500	4×7600	120	11	4*449		3*3.0	3
DD-160	31.28	160		4	500	4×7600	120	11	4*449		4*3.5	3.5
DD-200	38.68	200		4	500	4×7600	120	11	4*449		5*3.6	3.6
DD-250	51.58	250		4	600	4×11800	116	11	4*825		6*3.6	3.6
DD-310	60.17	310		4	600	4×11800	116	11	4*825		8*3.6	3.6

DL Type Air Cooler Speciffcation

Model	Capacity	Evaporation Area	Fin Space	Fan Motor Parameters
Model	Capacity	Evaporation Area	Fin Space	Qty.	Diameter	Air Flow	Max Wind Pressure	Range	Power	Voltage
	KW	m²	mm	pcs	mm	m³/h	Pa	m	W	V
DL-015	2.5	15	4.5	1	300	1×1800	90	8	1*90	220 380
DL-020	3.58	20		2	300	2×1800	90	8	2*90
DL-030	5.8	30		2	300	2×1800	90	8	2*90
DL-040	8.32	40		2	400	2×4200	105	9	2*216	380
DL-055	11.09	55		2	400	2×4200	105	9	2*216
DL-080	16.74	0		2	500	2×7600	120	11	2*449
DL-105	20.93	105		2	500	2×7600	120	11	2*449
DL-125	26.3	125		3	500	3×7600	120	11	3*449
DL-160	33	160		3	500	3×7600	120	11	3*449
DL-185	38.37	185		4	500	4×7600	120	11	4*449
DL-210	43.74	210		4	500	4×7600	120	11	4*449
DL-260	54.09	260		4	500	4×7600	120	11	4*449
DL-330	72.12	330		4	600	4×11800	116	11	4*825
DL-410	84.15	410		4	600	4×11800	116	11	4*825

DJ Type Air Cooler Speciffcation

Model	Capacity	Evaporation Area	Fin Space	Fan Motor Parameters							Defrost pipe parameters
Model	Capacity	Evaporation Area	Fin Space	Qty.	Diameter	Air Flow	Max Wind Pressure	Range	Power	Voltage	Coil	Water	Voltage
	KW	m²	mm	1	300	1×1800	90	8	1*90	V	KW	KW	V
DJ-007	1.37	7	9	2	300	2×1563	90	8	2*90	220 380	1*0.7	0.8	220
DJ-010	1.37	10		2	300	2×1563	90	8	2*90		2*0.85	0.8
DJ-015	2.22	15		2	400	2×4200	105	9	2*216		2*0.85	0.8
DJ-040	6.42	40		2	500	2×7600	120	11	2*449		3*1.4	1.6
DJ-055	8.03	55		3	500	3×7600	120	11	3*449		3*1.6	2
DJ-070	10.09	70		3	500	3×7600	120	11	3*449		3*2.1	2.2
DJ-085	12.66	85		4	500	4×7600	120	11	4*449	380	3*2.5	2.5	380
DJ-100	14.72	100		4	500	4×7600	120	11	4*449		3*3.0	3
DJ-115	16.78	115		4	500	4×7600	120	11	4*449		3*3.5	3.5
DJ-140	20.76	140		4	600	4×11800	116	11	4*825		5*3.6	3.6
DJ-170	27.68	170		4	600	4×11800	116	11	4*825		6*3.6	3.6
DJ-210	32.29	210		4	600	4×11800	116	11	4*825		8*3.6	3.6
