Cold Room
  • Cold Room
  • Cold Room
  • Cold Room

Cold Room

Feature

Heat Preservation Board Adopts Rigidpolyurethane (Pu) High Pressure Foaming,Innerand Outer Metal Surface, Color Layer Steel Plate,Embossed Aluminum Plate,Stainless Steel Plate,Galvanized Steel Plate And Other Materials Canbe Selected. Polyurethane Cold Storage Isgenerally A Combined Cold Storage,By Thepolyurethane Board Using Advanced Eccentricrotating Lock Combination, To Ensurerefrigeration.

  • Technical specification
  • About us
  • Get an inquiry

We specialize in manufacturing cold storage panels, condensing units, evaporators and other supporting equipment for cold storage. Provide customized cold storage design and construction services. Committed to providing more efficient, safer and more reliable refrigeration equipment services.

Thickness Temperature

difference
Wall panel

height(Max)
Top plate
height(Max)
Applicable cold storage temperature(℃)
mm M M 25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45 -50 -55
75 40 4.5 3.8
100 50 5 4.5
150 70 6 6.5
180 80 6.5 7.1
200 90 7 7.6
250 100 7.5 8.1


One-stop Cold Room Solution

Cold Room Refrigeration System

Cold storage is a facility used to store and keep goods, food or other items cold. ouyucool has 20 years of experience in the freezing industry.
Equipped with a complete set of cold storage system equipment. Provide you with professional customized cold storage design solutions.

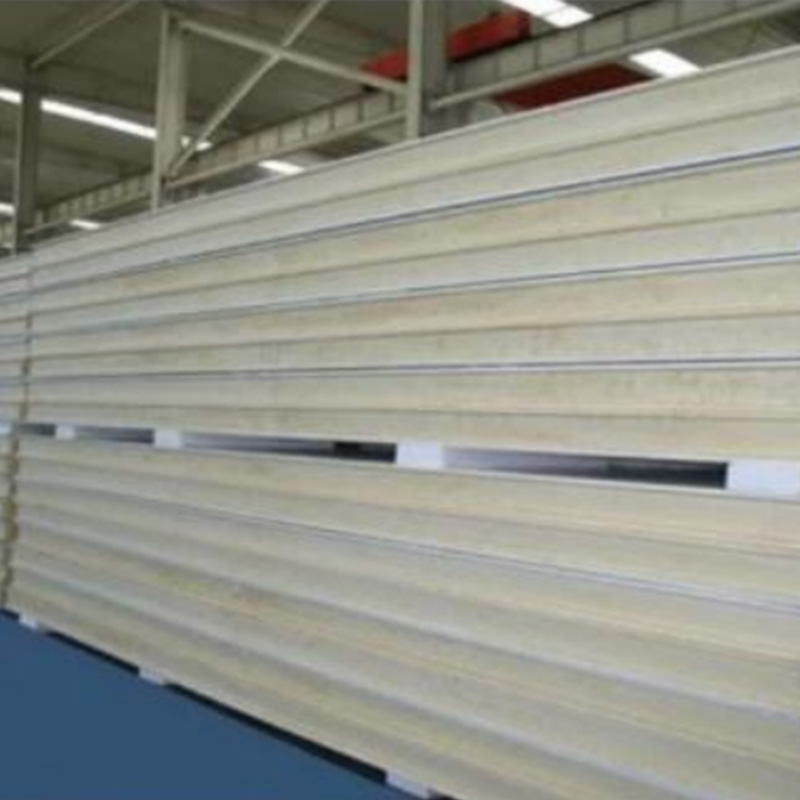

Cold Storage Board

Plate Thickness Temperature Difference Max Wal Panel Height

Max Top Plate Length

Applicable Cold Room Temperature
mm m* m*
75 40 4.5 3.8 -5℃-25℃
100 50 5 4.5 -15℃-25℃
150 70 6 6 -25℃-25℃
180 80 6.5 6.5 -35℃-25℃
200 90 7 7 -50℃-25℃

Mark:
m*:Under the pressure difference between inside and outside and shrinkage stress, there is no wind load. (If the length exceeds or there is wind load, steel wall beams need to be installed)
The above data is calculated based on the heat flow per unit area of 8-10w/square meter.


Surface Materia

Color steel plate Thickness Surface stripes
mm Flat Wide band Minutr tendon
Colored steel sheet 0.326-0.8
Stainless steel sheet 0.4-0.8
Embossed Aluminum sheet 0.5-0.3
Galvanized sheet 0.5-2
Polyurethane sheet
