What are the structural design features of Refrigeration Evaporator/Air Coole?

Refrigeration Evaporator/Air Coole each has its own unique characteristics in structural design, which directly affect its performance and use results. The following is a detailed analysis of their structural design features:
1. Structural design features of Refrigeration Evaporator:
Heat exchange efficiency is prioritized:
The evaporator uses high-efficiency heat exchange technology, such as bellows, spiral tube or micro-channel design, to maximize the contact area between the refrigerant and the air, thereby optimizing heat exchange efficiency.
The internal refrigerant flow path is reasonably designed to ensure that the refrigerant is evenly distributed inside the evaporator, reducing the flow resistance of the refrigerant and improving the heat transfer efficiency.
Corrosion protection and durability:
Considering that the evaporator is in long-term contact with refrigerant and humid environment, corrosion-resistant and wear-resistant materials are usually used in material selection, such as copper, stainless steel or special alloys.
The evaporator surface undergoes special treatment, such as spraying anti-corrosion coating, to improve its corrosion resistance and extend its service life.
Compactness and modularity:
The evaporator is designed to be compact to reduce its footprint in the refrigeration system and facilitate installation and maintenance.
Some evaporators adopt a modular design to facilitate flexible configuration and expansion according to cooling needs.

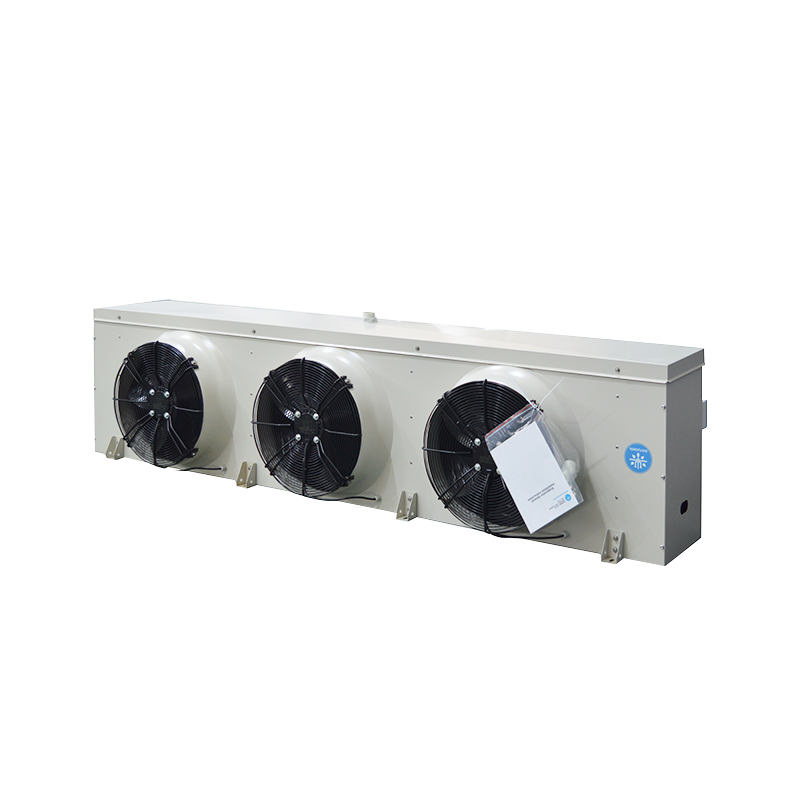

2. Air Coole’s structural design features:
Efficient heat dissipation and air flow optimization:
The heat sink design is dense and reasonable to increase the heat dissipation area and improve heat dissipation efficiency.
The fan design considers the balance of air volume and wind pressure to ensure that the air can flow through the heat sink evenly and improve the heat dissipation effect.
The air flow channel is reasonably designed to reduce air flow resistance and improve heat dissipation efficiency.
Silent and low vibration:
Fan blade shape and speed are optimized to reduce noise levels during operation.
Shock-absorbing structures and materials are used at the connection between the fan and the heat sink to reduce vibration transmission and improve the stability of equipment operation.
Modularity and maintainability:
Some Air Coolers adopt a modular design to facilitate disassembly and replacement of parts and reduce maintenance costs.
Structural design takes into account ease of cleaning and maintenance, such as easy-to-clean heat sink surfaces and removable fan components.
To sum up, the structural design of Refrigeration Evaporator/Air Coole focuses on efficient heat exchange, corrosion resistance, compactness, modularity and maintainability. These characteristics enable them to meet different refrigeration needs and operate stably in various environments, improving the refrigeration effect and overall performance of the equipment.
